670e8dd6c62c0600326e3758LC1D50AEHELC1D50AEHE

TeSys contactor-3P-AC3- <= 440V 50A -

ITM21663
INR9677.25Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

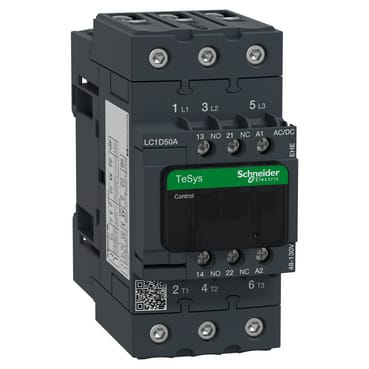

LC1D50AEHE

Images are for reference only.

  • Part Number:
    LC1D50AEHE
  • Manufacturer:
  • Description:
    Contactor
  • Detailed Description:

    TeSys contactor-3P-AC3- <= 440V 50A -

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys D contactor, 3 poles (3NO), for motor control applications up to 50A/690V AC-3/3e (22kW@400V). It provides a low consumption 48-130V AC/DC coil with electronic control, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Product Attributes

AttributeValue
Rated Operational Voltage(Ue)<= 690VAC 25...400hz
RangeTeSys
ApplicationMotor Control and Resistive Load
Poles3P
Utilisation CategoryAC-1,AC-3,AC-3e
Control Circuit Voltage48...130VDC,48...130VAC 50/60hz
Rated Operational Current(Ie)80 A 140 �F (60 �C)) <= 440 V AC-1 power circuit
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
8 Weeks
HSN Code
85365010

Standard Lead Time: 8 Weeks
