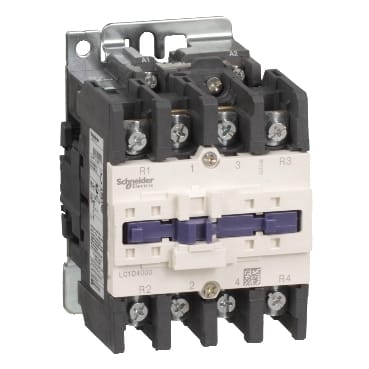

LC1D40008F7
Images are for reference only.
- Part Number:LC1D40008F7
- Manufacturer:
- Description:Contactor
- Detailed Description:
4P CONT 60A AC-1 2NO 2NC 110VAC COIL
Authorized
Franchise : Authorised Distributor
Product Brief
TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 60A/690V AC-1. It provides a 110V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Product Attributes
| Attribute | Value |
|---|---|
| Rated Operational Voltage(Ue) | <=300VDC,<=690VAC 25..400hz |
| Range | TeSys |
| Application | Resistive Load |
| Poles | 4P |
| Utilisation Category | AC-1 |
| Control Circuit Voltage | 110VAC 50/60hz |
| Rated Operational Current(Ie) | 60 A 140 �F (60 �C)) <= 440 V AC AC-1 power circuit |
| brand | Schneider Electric |
This item is sold on RFQ only. Click on "Get Quote" to raise RFQ
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
8 Weeks
HSN Code
85364900
Standard Lead Time: 8 Weeks
