670e98f1ea3eae00320ed428LC1D38M7LC1D38M7

TeSys CTR 38 AC3 18.5KW1NO1NC220VAC COIL

ITM20433
INR4313.25Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

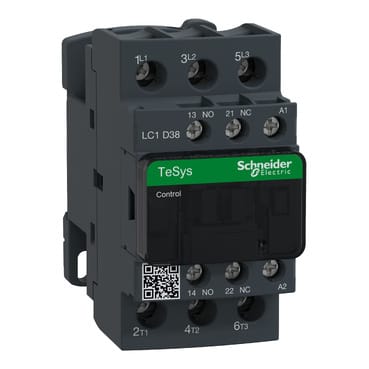

LC1D38M7

Images are for reference only.

  • Part Number:
    LC1D38M7
  • Manufacturer:
  • Description:
    Contactor
  • Detailed Description:

    TeSys CTR 38 AC3 18.5KW1NO1NC220VAC COIL

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys D contactor, 3 poles (3NO), for motor control applications up to 38A/440V AC-3/3e (18.5kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Product Attributes

AttributeValue
Rated Operational Voltage(Ue)<=300VDC,<=690VAC 25..400hz
RangeTeSys
ApplicationMotor Control and Resistive Load
Poles3P
Utilisation CategoryAC-3,AC-3e,AC-4,AC-1
Control Circuit Voltage220VAC 50/60hz
Rated Operational Current(Ie)50 A (at <60 �C) at <= 440 V AC AC-1 for power circuit
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
2 Weeks
HSN Code
85365010

Standard Lead Time: 2 Weeks
