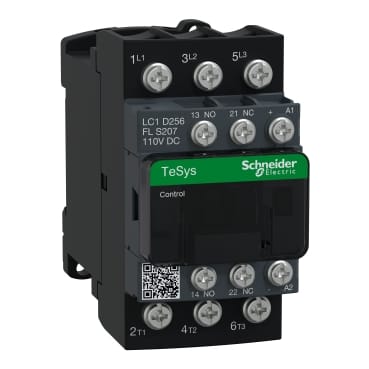

LC1D256FLS207

Images are for reference only.

  • Part Number:
    LC1D256FLS207
  • Manufacturer:
  • Description:
    Contactor
  • Detailed Description:
    Contactor 3P (3NO) AC-3 25A<=440V-coil 110V DC low
  • Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys Deca contactor, 3 poles (3NO), for motor control in railway applications up to 25A/690V AC-3/3e (11kW@400V). It provides a low consumption 110V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by lugs-ring terminals. It procures 3600 cyc/h for operating rate and environment temperature under 60°C. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, CCC, EAC) and compliant with the railway European standard EN 45545 R22HL3, Green Premium product (RoHS/REACh).

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
5 Weeks
HSN Code
85364900

Standard Lead Time: 5 Weeks
