670e8d572f8da800240a5060LC1D18E7LC1D18E7

TeSys CONTACTOR 18A 1F+1O 48V 50/60

ITM21617
INR1365.75Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

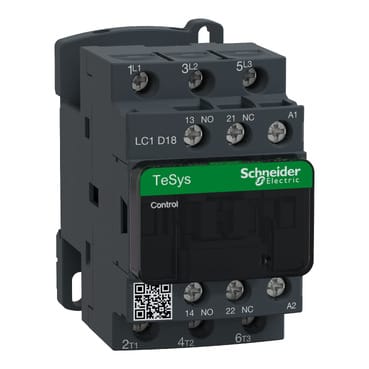

LC1D18E7

Images are for reference only.

  • Part Number:
    LC1D18E7
  • Manufacturer:
  • Description:
    Contactor
  • Detailed Description:

    TeSys CONTACTOR 18A 1F+1O 48V 50/60

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys D contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Product Attributes

AttributeValue
Rated Operational Voltage(Ue)<=300VDC,<=690VAC 25..400hz
RangeTeSys
ApplicationMotor Control and Resistive Load
Poles3P
Utilisation CategoryAC-3,AC-3e,AC-4,AC-1
Control Circuit Voltage48VAC 50/60hz
Rated Operational Current(Ie)18 A (at <60 �C) at <= 440 V AC AC-3 for power circuit
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
8 Weeks
HSN Code
85365010

Standard Lead Time: 8 Weeks
