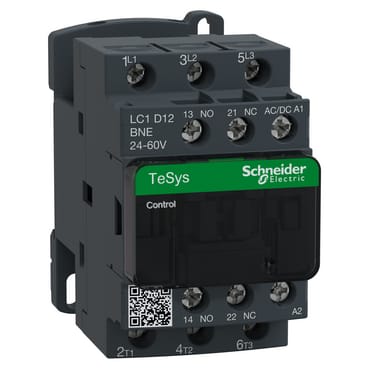

LC1D12BNE
Images are for reference only.
- Part Number:LC1D12BNE
- Manufacturer:
- Description:Contactor
- Detailed Description:
TeSys contactor-3P-AC3- <= 440V 12A -
Authorized
Franchise : Authorised Distributor
Product Brief
TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a low consumption 24-60V AC/DC coil with electronic control for direct PLC output connection, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Product Attributes
| Attribute | Value |
|---|---|
| Rated Operational Voltage(Ue) | <= 690VAC 25...400hz |
| Range | TeSys |
| Application | Motor Control and Resistive Load |
| Poles | 3P |
| Utilisation Category | AC-1,AC-3,AC-3e |
| Control Circuit Voltage | 24...60VDC,24...60VAC 50/60hz |
| Rated Operational Current(Ie) | 25 A (at <60 �C) at <= 440 V AC-1 for power circuit |
| brand | Schneider Electric |
In Stock : 1
Ships from Bangalore, India.
For Bulk Purchases, click on "Get Quote" to request custom offer
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
HSN Code
85364900
Enter Quantity
| Quantity | Unit Price (₹) |
|---|---|
| 1 | ₹3,862 |
Price excludes GST. Tax calculated at checkout.
1 item left in Stock
Your estimated delivery time will be shown here after you enter your PIN code, or it will appear automatically at the Checkout page.
Estimated delivery time is 5 Days
