TeSys contactor-3P-AC3- <= 440V 9A - 2

ITM12601
INR3668.6Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

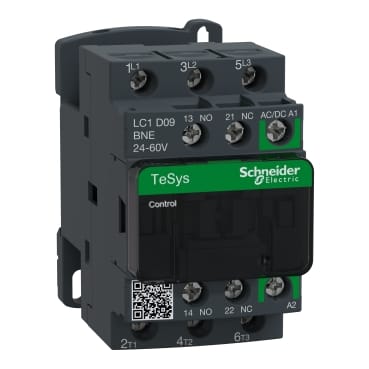

LC1D09BNESchneider Electric - Contactor

Images are for reference only.

  • Part Number:
    LC1D09BNE
  • Manufacturer:
  • Description:
    Contactor
  • Detailed Description:

    TeSys contactor-3P-AC3- <= 440V 9A - 2

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a low consumption 24-60V AC/DC coil with electronic control for direct PLC output connection, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Product Attributes

AttributeValue
Rated Operational Voltage(Ue)<= 690VAC 25...400hz
RangeTeSys
ApplicationMotor Control and Resistive Load
Poles3P
Utilisation CategoryAC-1,AC-3,AC-3e
Control Circuit Voltage24...60VDC,24...60VAC 50/60hz
Rated Operational Current(Ie)9 A (at <60 �C) at <= 440 V AC-3 for power circuit
brandSchneider Electric
RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
5 Weeks
HSN Code
85364900

Standard Lead Time: 5 Weeks
