670eaab9ea3eae00320ef47aKDS 4KDS 4

1 Pin,41A,320V,4mm ,Pih:7.5mm,ScrwCon,CLR:GN

ITM18566
INR141.99Out of Stock
Phoenix Contact
Select Store
  • B2C
  • B2B
Select Pincode

KDS 4

Images are for reference only.

  • Part Number:
    KDS 4
  • Manufacturer:
  • Article Number:
    1780507
  • Description:
    Terminal Block
  • Detailed Description:

    1 Pin,41A,320V,4mm ,Pih:7.5mm,ScrwCon,CLR:GN

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

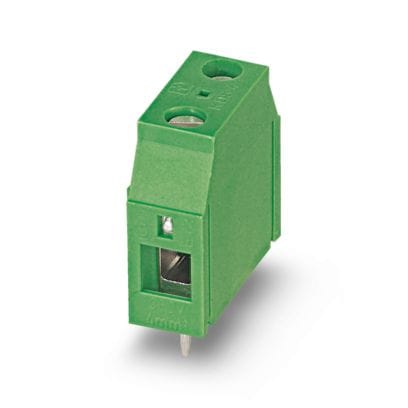

Printed circuit board terminal, nominal current: 41 A, rated voltage (III/2): 320 V, nominal cross section: 4 mm2, number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: KDS 4, pitch: 7.5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
50
Std Packing Qty
50
Lead Time
5 Weeks
HSN Code
85369090

Standard Lead Time: 5 Weeks
