670e94a37e39ce002b824982IPC 16/ 2-STGF-10.16IPC 16/ 2-STGF-10.16

2 Pin,76A,1000V,16mm ,Pih:10.16 mm,ScrwCon,CLR:GN

ITM20908
INR799.32Out of Stock
Phoenix Contact
Select Store
  • B2C
  • B2B
Select Pincode

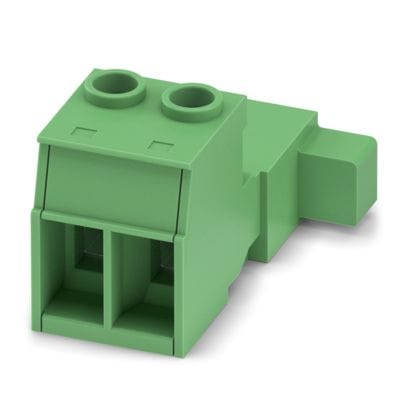

IPC 16/ 2-STGF-10.16

Images are for reference only.

  • Part Number:
    IPC 16/ 2-STGF-10.16
  • Manufacturer:
  • Article Number:
    1975817
  • Description:
    PCB Connector
  • Detailed Description:

    2 Pin,76A,1000V,16mm ,Pih:10.16 mm,ScrwCon,CLR:GN

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

PCB connector, nominal cross section: 16 mm2, color: green, nominal current: 76 A, rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: IPC 16/..-STGF, pitch: 10.16 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 16, locking: Screw locking mechanism for cable-to-cable connection, mounting method: Threaded flange, type of packaging: packed in cardboard

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
25
Std Packing Qty
25
Lead Time
7 Weeks
HSN Code
85369090

Standard Lead Time: 7 Weeks
