670e60eac62c0600326da39bGV2L14GV2L14

Motor Circuit Breaker,TeSys GV2,3P,10A,Magnetic

ITM39428
INR3132Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

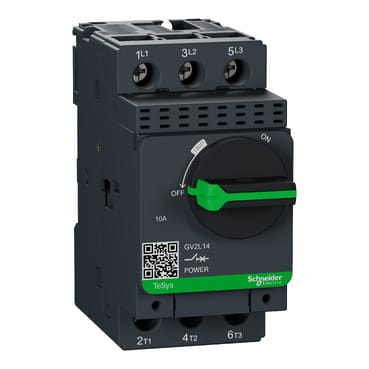

GV2L14

Images are for reference only.

  • Part Number:
    GV2L14
  • Manufacturer:
  • Description:
    Circuit Breaker
  • Detailed Description:

    Motor Circuit Breaker,TeSys GV2,3P,10A,Magnetic

  • Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys GV motor circuit breaker, 3 poles (3P), 10A/690V, for 3-phase motor applications 3-4kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary handle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD14 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
5 Weeks
HSN Code
85362090

Standard Lead Time: 5 Weeks
