FUSE DISCONNECT SWITCH 4X 250A 1

ITM35968
INR62265Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

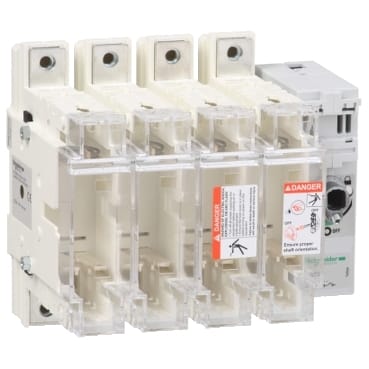

GS2N4Schneider Electric - Circuit Breaker Acc

Images are for reference only.

  • Part Number:
    GS2N4
  • Manufacturer:
  • Description:
    Circuit Breaker Acc
  • Detailed Description:

    FUSE DISCONNECT SWITCH 4X 250A 1

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys GS fuse switch-disconnector, 4 poles (4P), 250A/750V, to be used with DIN blade fuse links size 1 up to 250A, for motor applications up to 132kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 4P terminal shrouds GS1AP44 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules GS1AM (front mounting), GS1AN (side mounting), GS1AF (top mounting for blown signaling with stricker fuses) can complete the assembly (to be ordered separately). Type aM and gG size 1 blade fuse links without strickers DF2HA, DF2HN and with strickers DF4HA, DF4HN are available (to be ordered separately). Multi standards certified (IEC, Marine), Green Premium compliant (RoHS/REACh).

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
12 Weeks
HSN Code
85389000

Standard Lead Time: 12 Weeks
