670ee0b32f8da800240aede7GMKDSN 1.5/ 4-7.62GMKDSN 1.5/ 4-7.62

4Pin,16A,630V,1.5 mm ,Pih:7.62 mm,ScrwCon,CLR:GN

ITM07739
INR130.76Out of Stock
Phoenix Contact
Select Store
  • B2C
  • B2B
Select Pincode

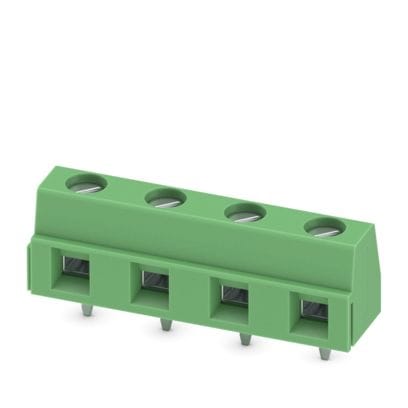

GMKDSN 1.5/ 4-7.62

Images are for reference only.

  • Part Number:
    GMKDSN 1.5/ 4-7.62
  • Manufacturer:
  • Article Number:
    1707043
  • Description:
    PCB Terminal Block
  • Detailed Description:

    4Pin,16A,630V,1.5 mm ,Pih:7.62 mm,ScrwCon,CLR:GN

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

Printed circuit board terminal, nominal current: 16 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm2, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: GMKDSN 1,5, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
80
Std Packing Qty
80
Lead Time
5 Weeks
HSN Code
85369090

Standard Lead Time: 5 Weeks
