DFMC 1.5/14-ST-3.5-LR

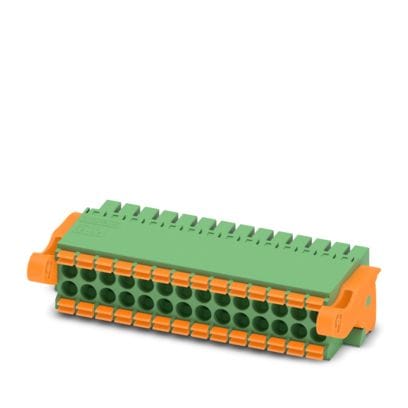

Images are for reference only.

  • Part Number:
    DFMC 1.5/14-ST-3.5-LR
  • Manufacturer:
  • Article Number:
    1790603
  • Description:
    PCB connector
  • Detailed Description:
    14Pin,8A,160V,1.5mm ,Pih:3.5mm,Push in,CLR:GN
  • Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Socket, number of potentials: 28, number of rows: 2, number of positions: 14, number of connections: 28, product range: DFMC 1,5/..-ST-LR, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Insertion in base strip, conductor/PCB connection direction: 0 °, plug-in system: COMBICON DFMC 1,5, locking: Lock-and-release locking system, mounting method: Lock & Release ejector lever, type of packaging: packed in cardboard

Product Attributes

AttributeValue
brandPhoenix Contact
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
50
Std Packing Qty
50
Lead Time
10 Weeks
HSN Code
85366990

Standard Lead Time: 10 Weeks
