DFK-MSTB 2.5/ 3-G-5.08

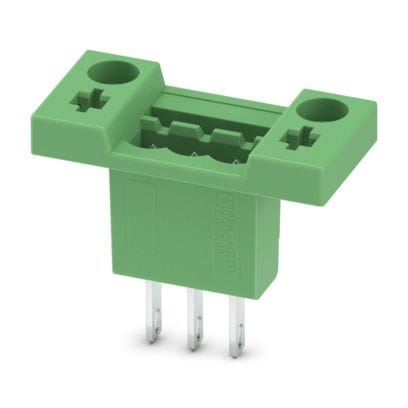

Images are for reference only.

Part Number:
DFK-MSTB 2.5/ 3-G-5.08
Manufacturer:
Phoenix Contact
Article Number:
0707251
Description:
PCB Connector
Detailed Description:
3PinM,12A,,320V,2.5mm ,pih:5.08mm,Sdr/SOn,CLR:GN
Datasheet
Authorized

Product Brief

Feed-through header, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: DFK-MSTB 2,5/..-G, pitch: 5.08 mm, connection method: Solder/Slip-on connection, mounting: Direct mounting, pin layout: Linear pinning, solder pin [P]: 9.3 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting method: without, type of packaging: packed in cardboard, accessory Item No. 5030172 can only be used in conjunction with MSTB 2,5/...ST-5,08 and MSTBT 2,5/...ST-5,08.

Product Attributes

Attribute	Value
brand	Phoenix Contact

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In

PCS

Min Order Qty

Std Packing Qty

Lead Time

5 Weeks

HSN Code

85369090
