6887469cbcf695577c7a7e83DF143CDF143CFuse Holder 3P 50A For Fuse 14 x 51 mmITM40919
INR2304.8Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

DF143C

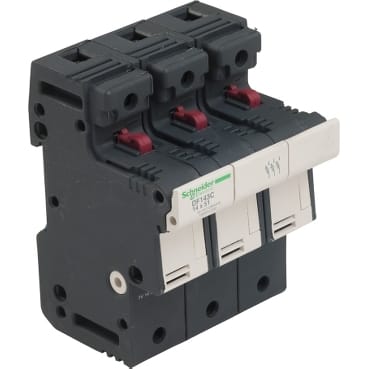

Images are for reference only.

  • Part Number:
    DF143C
  • Manufacturer:
  • Description:
    Fuse Holder
  • Detailed Description:
    Fuse Holder 3P 50A For Fuse 14 x 51 mm
  • Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links with stricker up to 50A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF14AM* (to be ordered separately). Compact (79mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with striker (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC), Green Premium product (RoHS/REACh).

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
5 Weeks
HSN Code
85365090

Standard Lead Time: 5 Weeks
