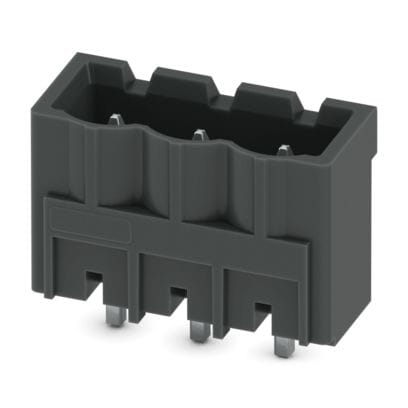

CCVA 2.5/ 3-G-5.08 P26THRR32

Images are for reference only.

Part Number:
CCVA 2.5/ 3-G-5.08 P26THRR32
Manufacturer:
Phoenix Contact
Article Number:
1955976
Description:
PCB Header
Detailed Description:
3Pin M,12A,320V,2.5mm ,Pitch:5.08mm,RA,Pug-in,BK
Datasheet
Authorized

Product Brief

PCB headers, nominal cross section: 2.5 mm2, color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: CCVA 2,5/..-G, pitch: 5.08 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting method: without, type of packaging: 32 mm wide tape, For user information and design recommendations for through-hole reflow technology, go to: Downloads

Product Attributes

Attribute	Value
brand	Phoenix Contact

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In

PCS

Min Order Qty

140

Std Packing Qty

140

Lead Time

12 Weeks

HSN Code

85369090
