670e622fffb37e002bec4c07C16F3TM125C16F3TM125

NSX160F 36kA AC 3P3D 125A TMD

ITM37854
INR14190Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

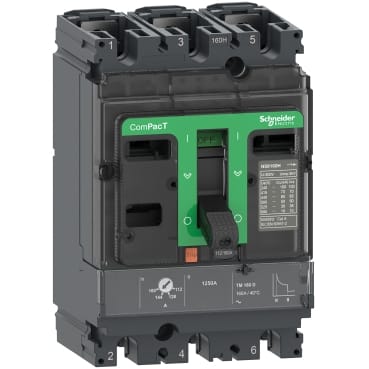

C16F3TM125Schneider Electric - MCCB

Images are for reference only.

Franchise : Authorised Distributor

Product Brief

This ComPacT NSX160F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 125A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160F is part of Schneider Electric EcoStruxure Power architecture.

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
5 Weeks
HSN Code
85362090

Standard Lead Time: 5 Weeks
