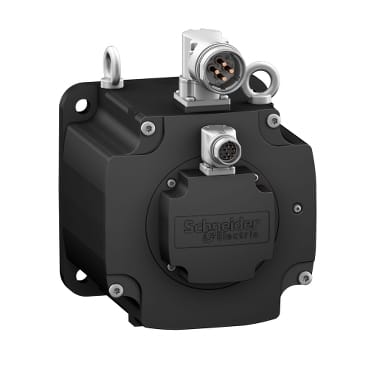

BMH1903P31A2ASchneider Electric - Servo Motor

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 3500RPM and keyed shaft end without holding brake. It is an equipped with a single-turn SinCos Hiperface� feedback with 1,31,072 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 36.1A and a continuous power of 7.95W. The shaft dimensions are 38mm (diameter) x 80mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP65 and IP67 rated product. The length of this product is 310mm and the centering collar dimensions are 4mm (depth) x 180mm (diameter) with 215mm mounting hole. It weighs 43kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D72N4 at 400V to 480V three phase. It supports 190mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
