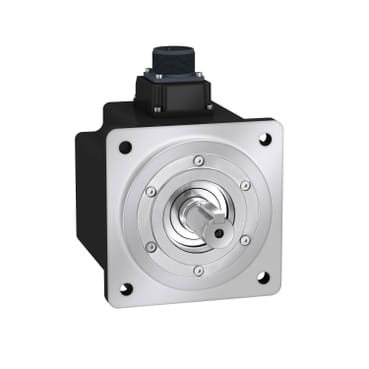

BCH2MM1523CA6C

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 3000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of torque and speed of rotation (2000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 6.18A and a continuous power of 1500W. The shaft dimensions are 22mm (Diameter) x 55mm (Length). It is furnished with MIL connector for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 167mm (Length) x 130mm (Width), centring collar dimensions are 8mm (Depth) x 110mm (Diameter) with 145mm circle diameter of the mounting hole. It weighs 7.6kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 130mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
