670e9a0bea3eae00320ed6edATV610D11N4ATV610D11N4

ATV610, 11 kW/15HP, 380...460 V, IP20

ITM31449
INR9999999Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B

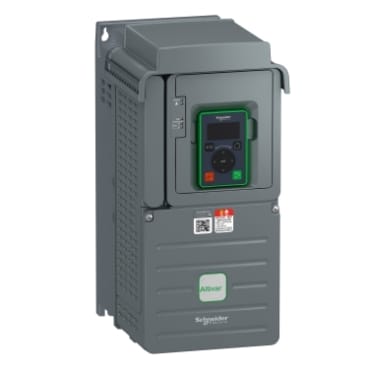

ATV610D11N4

Images are for reference only.

  • Part Number:
    ATV610D11N4
  • Manufacturer:
  • Description:
    VFD
  • Detailed Description:

    ATV610, 11 kW/15HP, 380...460 V, IP20

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 11kW / 15hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 7.5kW / 10hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive �products� IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 7.2kg and its dimensions are, 171mm wide, 360mm high, 233mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.

Product Attributes

AttributeValue
ApplicationFan, Pump, Compressor, Conveyor
Motor Power KW11 KW
Max HP Rating15 HP
VFD Phase3 phase
Rated Supply Voltage(Us)380...460V - 15...10%
Supply Frequency50/60Hz +/- 5%
Communication Port ProtocolModbus Serial
Product DestinationAsynchronous Motor
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
6 Weeks
HSN Code
85044090

Standard Lead Time: 6 Weeks
