670e95517e39ce002b824ba6ATV340D37N4EATV340D37N4E

ATV340 37KW 50HP 400V WITH ETHERNET VARI

ITM31963
INR9999999Out of Stock
Schneider Electric
11

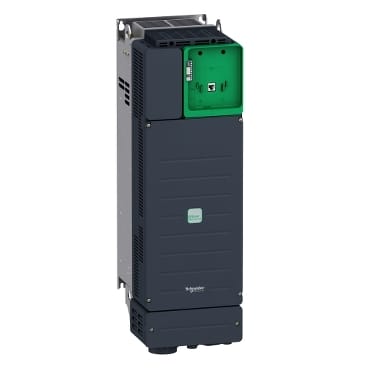

Images are for reference only.

  • Part Number:
    ATV340D37N4E
  • Manufacturer:
  • Description:
    VFD
  • Detailed Description:

    ATV340 37KW 50HP 400V WITH ETHERNET VARI

  • Authorized IconAuthorized
    • Duns Icon
    • Ecia Icon
    • ISO Icon
Franchise : Authorised Distributor

Product Brief

This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 37kW / 50hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 �C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 28.4kg and its dimensions are, 213mm wide, 660mm high, 262mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and T�V certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 �) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric�s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS relating to environmental protection.

Product Attributes

AttributeValue
ApplicationMachine
Motor Power KW45 KW
Range of ProductALTIVAR Machine ATV340
Max HP Rating60 HP
VFD Phase3 phase
Rated Supply Voltage(Us)380...480V - 15...10%
Supply Frequency50/60Hz +/- 5%
Communication Port ProtocolModbus Serial, EtherNet/IP, Modbus TCP
brandSchneider Electric
