ATV312H075N4

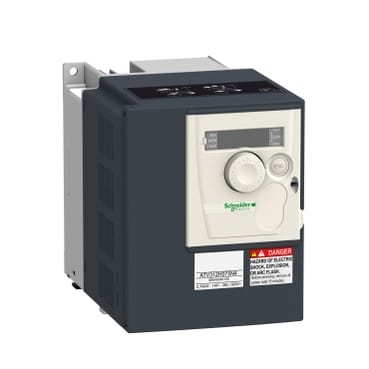

Images are for reference only.

Part Number:
ATV312H075N4
Manufacturer:
Schneider Electric
Description:
VFD
Detailed Description:
ATV312 ALTIVAR 0,75KW 500V 3 PHASES
Datasheet
Authorized

Product Brief

This Altivar 312 3-phase variable speed drive has a rated power of 0.75kW, 2.4kVA, and a 380V to 500V AC rated output voltage. It is suitable for industrial machines such as materials handling and packaging, packing, textile machines, special machines, pumps and fans. It has a compact form-factor with 107mmwidth, allowing for a flexible and easy installation on a mounting plate. It also offers a snap-lock seal, status and faults display, a jog dial navigation button and an integrated EMC filter. It offers high readability of key parameters thanks to a bright LED 4-digit display. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime.

Product Attributes

Attribute	Value
Application	Simple Machine
Motor Power KW	0.75 KW
Range of Product	ALTIVAR 312
Max HP Rating	1 HP
VFD Phase	3 phase
Rated Supply Voltage(Us)	380...500V - 15...10%
Supply Frequency	50...60Hz - 5...5%
Communication Port Protocol	Ethernet IP, Modbus TCP, Modbus
Product Destination	Asynchronous Motor
brand	Schneider Electric

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In

PCS

Min Order Qty

Std Packing Qty

Lead Time

8 Weeks

HSN Code

85044090
