670e851dc62c0600326e1650ATV310HD11N4EATV310HD11N4E

ATV310, 11 kW, 15 hp, 380...460 V

ITM22615
INR49445.55Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

ATV310HD11N4E

Images are for reference only.

  • Part Number:
    ATV310HD11N4E
  • Manufacturer:
  • Description:
    VFD
  • Detailed Description:

    ATV310, 11 kW, 15 hp, 380...460 V

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

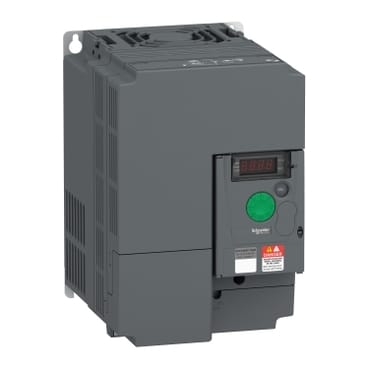

This Easy Altivar 310 drive is a frequency inverter for three-phase asynchronous motors. Its protection index is IP20. It works at a rated power up to HD 11kW/15HP or ND 15kW/20HP, and a rated voltage from 380V to 460V AC. Its compact size, robust design and ease of installation, based on the principle of plug and play and its integrated functions make it particularly suitable for applications involving industrial machines and certain consumer machines. It offers high readability of key parameters thanks to a bright LED 4-digit display. Underload and overload detection help to protect your installation. It weighs 3.7kg and its dimensions are, 150mm wide, 232mm high, 171mm deep. This drive incorporates functions that are suitable for the most common applications, including textile machine, machine tools, wood making machine, material handling, packaging and printing machines, ceramic machine.

Product Attributes

AttributeValue
ApplicationSimple Machine
Motor Power KW15 KW
Max HP Rating20 HP
VFD Phase3 phase
Rated Supply Voltage(Us)380...460V - 15...10%
Supply Frequency50/60Hz +/- 5%
Communication Port ProtocolModbus
Product DestinationAsynchronous Motor
seriesATV310
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
5 Weeks
HSN Code
85044090

Standard Lead Time: 5 Weeks
