Acti9 COMB BUSBAR 3P 100A 24 MODULES

ITM26374
INR2709.25Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

A9XPH324Schneider Electric - Circuit Breaker Acc

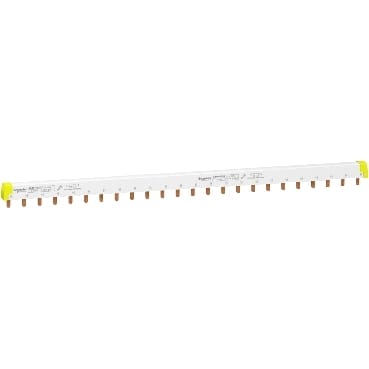

Images are for reference only.

  • Part Number:
    A9XPH324
  • Manufacturer:
  • Description:
    Circuit Breaker Acc
  • Detailed Description:

    Acti9 COMB BUSBAR 3P 100A 24 MODULES

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

This Acti9 product is a cuttable horizontal comb busbar 24 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to 3L installations. The type is L1L2L3 (Line). It is a set of 1 device. It is suitable for 8 devices (3P). The length is 430mm.The total number of modules of 18mm is 24. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 3. The number of poles is 3. The Ie rated operational current at 40°C is 100A The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
6 Weeks
HSN Code
85369090

Standard Lead Time: 6 Weeks
