A9XPH212

Images are for reference only.

Part Number:
A9XPH212
Manufacturer:
Schneider Electric
Description:
Circuit Breaker Acc
Detailed Description:
Acti9 COMB BUSBAR 2P 100A 12 MODULES
Datasheet
Authorized

Product Brief

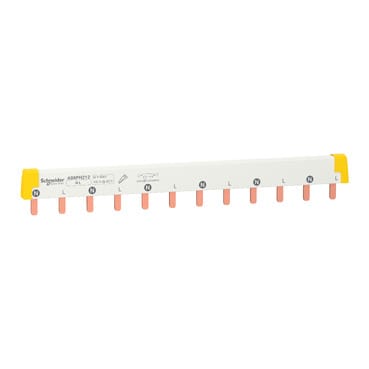

This Acti9 product is a cuttable horizontal comb busbar 12 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to N+1L installations. The type is NL (Neutral, Line). It is a set of 1 device. It is suitable for 6 devices (1P+N). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 2. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.

Product Attributes

Attribute	Value
brand	Schneider Electric

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In

PCS

Min Order Qty

Std Packing Qty

Lead Time

12 Weeks

HSN Code

85369090
