Acti9 COMB BUSBAR AUX1P 100A 57 Modules

ITM39902
INR3162Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

A9XAH157

Images are for reference only.

  • Part Number:
    A9XAH157
  • Manufacturer:
  • Description:
    Circuit Breaker Acc
  • Detailed Description:

    Acti9 COMB BUSBAR AUX1P 100A 57 Modules

  • Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

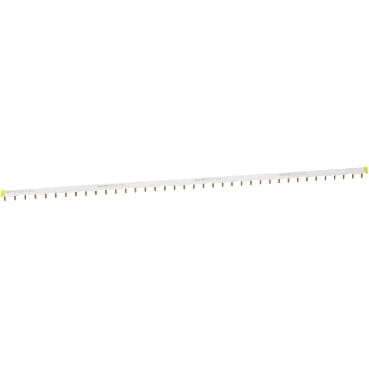

This Acti9 product is a cuttable horizontal comb busbar 57 modules with 9mm auxiliary for Acti9 iC60 or Acti9 iK60. It is dedicated to 1L installations. The type is Aux+L1 (Auxiliary, Line). It is a set of 1 device. It is suitable for 38 devices (1P) with associated auxiliaries. The length is 1000mm. The total number of modules of 18mm is 57. The pin cross section is 16mm². The type of electric connection is PIN. The number of phase is 1. The number of poles is 1. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white (RAL 9003). The pollution degree is 3. The resistance of the plastic to flames and to abnormal heat is 960°C within 30s conforming to IEC 60695-2-1. It complies with IEC 60947-7-1 and IEC 61439-2 standards.

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
5 Weeks
HSN Code
85369090

Standard Lead Time: 5 Weeks

FAQ

Frequently Asked Questions

The Get Quote feature allows you to select the product you need and request for a quotation.

To Request for a Quote RFQ, click the "Get Quote" button for the product you need. Fill out the requested details and submit.

Yes, we do offer special pricing. Click on Get Quote for the product you need or email us at [email protected]

Typicaly 12-72 hours. However, it can take longer with some products. You are assigned a key account manager, who will keep you updated about the status of your request.

Yes. All our our products are purchased directly from the Manufacturer (or a pre-defined authorised channel). By default all warranties extended by the Manufacturer would extend to you as purchaser. And yes, we can provide a COC on request.
