Acti 9 Isolator xSW 4P 63A

ITM32147
INR1718.25Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

A9S4P063

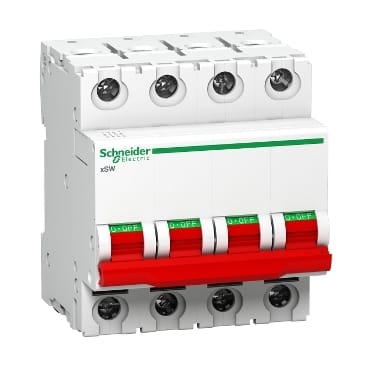

Images are for reference only.

  • Part Number:
    A9S4P063
  • Manufacturer:
  • Description:
    Circuit Breaker
  • Detailed Description:

    Acti 9 Isolator xSW 4P 63A

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

This Acti9 xSW is a modular and reliable switch disconnector. it is a 4 poles, rated current is 63A, and o poleserating voltage is 415VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Total number of 18 mm modules 4. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-1,EN/IEC 60947-3.

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
6 Weeks
HSN Code
85365010

Standard Lead Time: 6 Weeks
