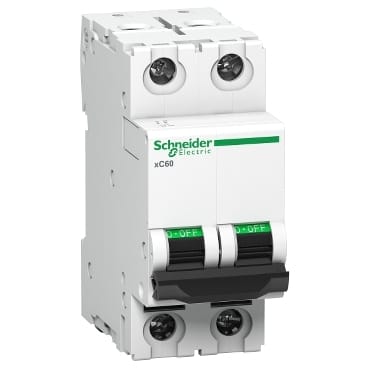

A9N2P06CSchneider Electric - Circuit Breaker

Images are for reference only.

  • Part Number:
    A9N2P06C
  • Manufacturer:
  • Description:
    Circuit Breaker
  • Detailed Description:
    Acti9 MCB xC60 2P 6A C 15KA 415V
  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

This Acti9 xC60 is a low voltage biconnect miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 6A In rated current with D tripping curve. The rated short circuit breaking capacity is up to 10000A at 380VAC - 415VAC conforming to IS/IEC 60898-1 standard. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of the green strip guarantees physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 20000 cycles. The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003) According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 85°C.

Product Attributes

AttributeValue
CategoryCircuit Breaker
Rated Current6A
RangeActi9
Mounting TypeDIN Rail
Breaker TypeThermal Magnetic
Actuator TypeToggle
Number of Poles2
Network frequency50/60 Hz
Rated operational voltage240 V AC 50/60 Hz 380...415 V AC 50/60 Hz 100...125 V DC
Height85 mm
Width36 mm
Depth77.5 mm
Net weight0.215 kg
ColourWhite
Operating Temperature-30 C to 70 C
Approval AgencyEN/IEC 60898-1 EN/IEC 60947-2 IP20 conforming to IEC 60529
brandSchneider Electric

In Stock In Stock : 1

RFQ

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
HSN Code
85362030
1 item left in Stock
