Acti9 Vigi XC60 4P 63A AC 30mA

ITM32404
INR3584.1In Stock
Schneider Electric

A9N26643

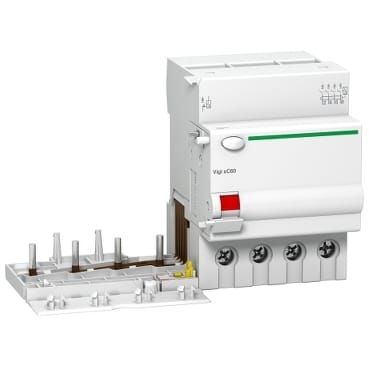

Images are for reference only.

  • Part Number:
    A9N26643
  • Manufacturer:
  • Description:
    Circuit Breaker
  • Detailed Description:

    Acti9 Vigi XC60 4P 63A AC 30mA

  • Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

This Acti9 Vigi xC60 is a modular add-on residual current devices. It is a 4P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 30mA and a electromechanical technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-2-1 and EN/IEC 61009-1 standard. The Ue rated operational voltage is from 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The dimensions are (W) 135mm x (H) 87mm x (D) 74.5mm. The weight is 285g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.

Product Attributes

AttributeValue
brandSchneider Electric
