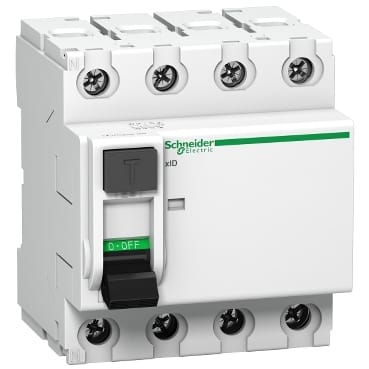

Acti9 xID 4P 25A 30mA AC RCCB

ITM05917
INR2212.32In Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

A9N16251

Images are for reference only.

  • Part Number:
    A9N16251
  • Manufacturer:
  • Description:
    Circuit Breaker
  • Detailed Description:

    Acti9 xID 4P 25A 30mA AC RCCB

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

This product is a Acti9 xID biconnect residual current circuit breaker (RCCB). It is a 4P circuit breaker with 25A In rated current, 30mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. The connection is made downstream by biconnect comb busbar or upstream/downstream by tunnel terminals. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is up to 500A . It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 4000 cycles. The Ue operational voltage is 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 75mm. The weight is 370g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 85°C.

Product Attributes

AttributeValue
brandSchneider Electric

In StockIn Stock : 2

Ships from Bangalore, India.

For Bulk Purchases, click on "Get Quote" to request custom offer
Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
HSN Code
85362040

Enter Quantity

QuantityUnit Price (₹)
1₹2,212.3
Price excludes GST. Tax calculated at checkout.
2 item left in Stock

Your estimated delivery time will be shown here after you enter your PIN code, or it will appear automatically at the Checkout page.

Estimated delivery time is 6 Days
