Images are for reference only.

  • Part Number:
    83791
  • Manufacturer:
  • Description:
    Industrial Socket
  • Detailed Description:
    SOCKET W/INTERLOCK 32A 2P-E 200-250V 50-
  • Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

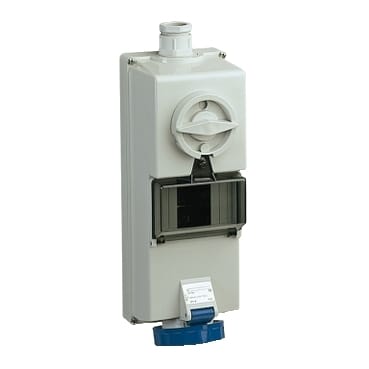

This PratiKa industrial interlocked socket with captive screws connection is wall-mounted. It has 2P+E pole, rated current is 32A and the operating voltage is 200VAC to 250VAC. The dimensions of the interlocked socket are (W) 144mm x (H) 330mm. The degree of protection is IP65 and IK10. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 32A is 25mm for 10mm² cables. The color of the socket is grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
5 Weeks
HSN Code
85366990

Standard Lead Time: 5 Weeks
