SOCLE PRISE ENC. DROIT 63A 3PNT 380-415V

ITM20904
INR4164Out of Stock
Schneider Electric
Select Store
  • B2C
  • B2B
Select Pincode

81683

Images are for reference only.

  • Part Number:
    81683
  • Manufacturer:
  • Description:
    Industrial Socket
  • Detailed Description:

    SOCLE PRISE ENC. DROIT 63A 3PNT 380-415V

  • PDF Icon Datasheet
    Authorized IconAuthorized
Franchise : Authorised Distributor

Product Brief

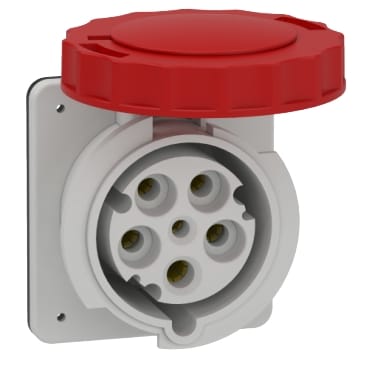

This Pratika industrial socket with completely loosened captive screws connection is straight panel mounted. It has 3P+N+E poles, rated current is 63A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 108mm x (H) 107mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 17mm to 31mm for 6mm² to 25mm² cables. The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.

Product Attributes

AttributeValue
brandSchneider Electric
In Stock

This item is sold on RFQ only. Click on "Get Quote" to raise RFQ

Sold In
PCS
Min Order Qty
1
Std Packing Qty
1
Lead Time
8 Weeks
HSN Code
85366990

Standard Lead Time: 8 Weeks
