Reliable electrical connections are essential for industrial electronics, control systems and PCB-based equipment. When installation space is limited, connector design becomes particularly important.

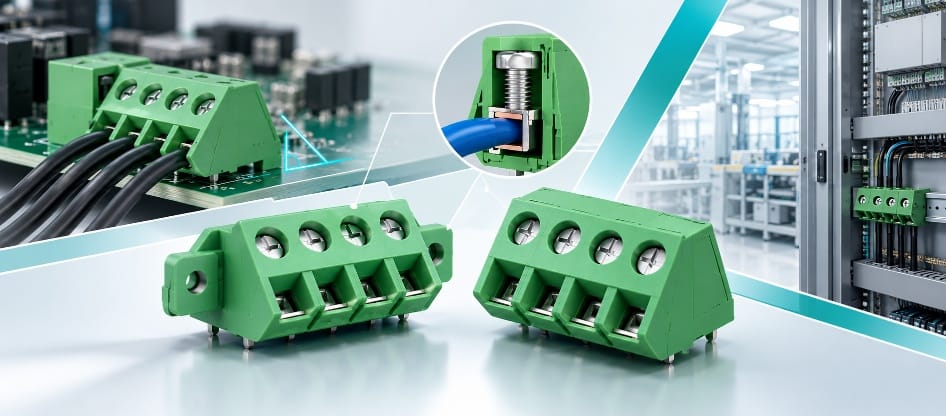

The Phoenix Contact GSMSTB 2,5 PCB connectors feature a 45° angled connection direction and screw connection technology, making them suitable for applications where space-efficient wiring and secure conductor termination are required.
Available with a 7.62 mm pitch and with or without a screw flange, these connectors are compatible with the existing Phoenix Contact COMBICON product range.
Key Features of Phoenix Contact GSMSTB 2,5 Connectors
- Screw connection technology: Provides a familiar conductor termination method for electrical connections.
- 45° angled connection direction: Supports wiring in installations with limited space.
- 7.62 mm pitch: Suitable for PCB layouts designed around this terminal spacing.
- Current rating up to 12 A: Supports applications within the specified electrical limits.
- Voltage rating up to 630 V: Suitable for designs that meet the applicable electrical and safety requirements.
- Flexible mounting options: Available with and without a screw flange.
- Conductor cross-section: Supports conductors from 0.2 mm² to 2.5 mm².
- COMBICON compatibility: Compatible with the Phoenix Contact MSTB family with a 7.62 mm pitch.
Note: Confirm the electrical ratings and compatibility of the specific connector variant before finalising your design.
Benefits of Angled PCB Connectors with Screw Connection
1. Efficient Use of Installation Space
The 45° angled cable outlet helps accommodate wiring in confined installation environments. This can be useful in compact control panels, electronic equipment and industrial devices where connector orientation affects cable routing.
2. Secure Electrical Connections
The screw connection principle provides a familiar method of terminating conductors. The high contact force supports reliable contact, while the connector design helps limit heat generation under appropriate operating conditions.
3. Improved Mechanical Stability
Selected versions are available with a screw flange to provide additional mechanical stability. This option can be beneficial where a more secure connection between the connector and its mating component is required.
4. Flexible Conductor Connection
The connector design allows two conductors to be connected, depending on the applicable variant and permitted wiring configuration. This offers additional flexibility when planning electrical connections.
5. Integration with the COMBICON Product Range
Compatibility with the Phoenix Contact MSTB family at a 7.62 mm pitch can simplify component selection for suitable existing PCB connector designs. Always check the exact mating compatibility and electrical specifications for the chosen part numbers.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product series | Phoenix Contact GSMSTB 2,5 |
| Connection technology | Screw connection |
| Connection direction | 45° angled |
| Pitch | 7.62 mm |
| Conductor cross-section | 0.2 mm² to 2.5 mm² |
| Maximum current | Up to 12 A |
| Maximum voltage | Up to 630 V |
| Screw flange | Available with or without |
| Product compatibility | COMBICON range; MSTB family with 7.62 mm pitch |
Electrical ratings may vary by product variant and operating conditions. Refer to the manufacturer's documentation for the selected part number.
Applications of Phoenix Contact GSMSTB 2,5 PCB Connectors
The GSMSTB 2,5 series can be considered for PCB-based electrical and electronic equipment where angled wire termination and screw connection technology are required.
Potential applications include:
- Industrial control and automation equipment
- Control boards and electronic assemblies
- Electrical equipment with limited wiring space
- Industrial interface and connection modules
- Equipment requiring PCB connectors with screw-flange mounting options
The suitability of a specific connector depends on the design, electrical load, conductor requirements and installation conditions.
For further product information, visit the official Phoenix Contact GSMSTB 2,5 product range.
Enquire About Phoenix Contact GSMSTB 2,5 Connectors Through ARC
Looking for Phoenix Contact PCB connectors for your next electrical or industrial electronics project?
ARC can assist with your product enquiry for the Phoenix Contact GSMSTB 2,5 angled PCB connector series. Share your required part number, conductor size, pitch, current and voltage requirements to help identify the appropriate product variant.
Contact ARC today to enquire about Phoenix Contact GSMSTB 2,5 connectors. Get in touch with our team for product details, availability and assistance with your connector requirements.
